Note: This is a variation of Corrugated Fiber Cement Boards.

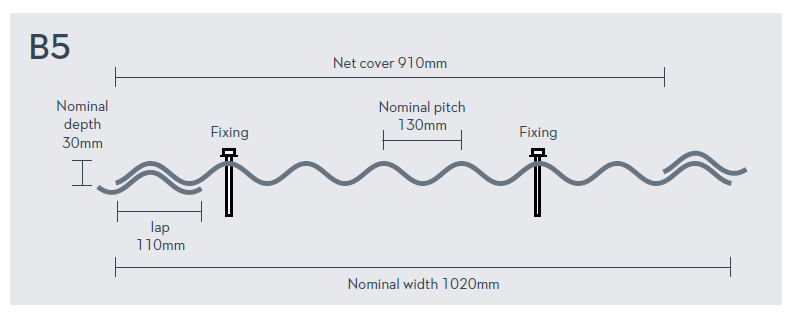

The B5 metric corrugation profile is a more modern profile than the traditional 3 inch profile so can be used to a lower pitch and with smaller overlaps. The sheets are approximately 40% wider, offering a better coverage per sheet. B5 is available in 12 lengths from 4′ 6″ to 10′ 6″. B5 can be used to refurbish buildings clad in 3 inch sheets utilizing ‘existing purlin centres’. All existing 3 inch sheets need to be removed, it is not possible to replace individual 3 inch sheets with B5.
Specifications
| Composition | Non-Asbestos Fiber Cement |
|---|---|
| Available Thickness ( in ) | 1/4 |
| Available Thickness ( mm ) | 6 |
| Sheet Length ( in ) | 63 98.4 |
| Sheet Length ( mm ) | 1600 2500 |
| Sheet Width ( in ) | 39.4 |
| Sheet Width ( mm ) | 1000 |
| Minimum Roof Pitch ( º ) | 7 |
Additional Information
The B5 corrugated profile is a more modern profile than the traditional 3 inch profile so can be used to a lower pitch and with smaller overlaps. The sheets are approximately 40% wider, offering a better coverage per sheet. B5 is available in 12 lengths from 4′ 6″ to 10′ 6″. B5 can be used to refurbish buildings clad in 3 inch sheets utilizing existing purlin centres. All existing 3 inch sheets need to be removed, it is not possible to replace individual 3 inch sheets with B5.
